suicyde engine

Post by Tony Z »

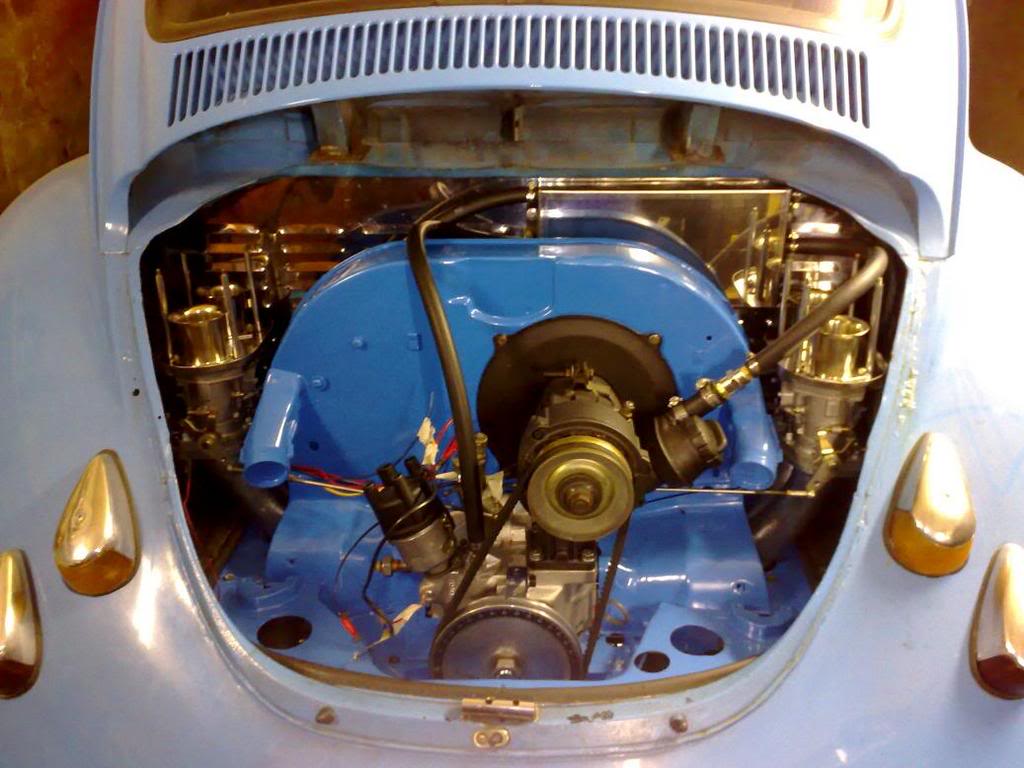

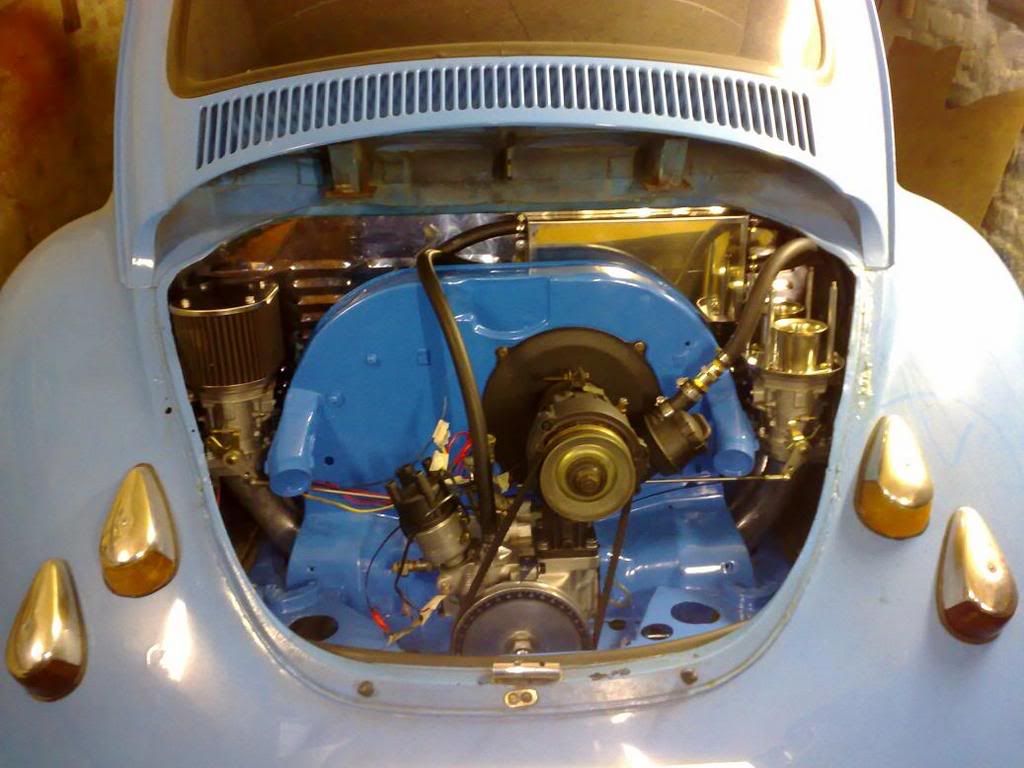

Hey guys. Its about time I put some pics of the engine on the forum. Most of them were taken with the phone...

As some of you may remember, I had a not so pleasant incident while breaking in the cam.
It appears that the hole for the pulley was bored slightly off-centre from the main bearings. So during the cam break-in, the pulley seized against the case.
The engine is currently apart waiting for me to repair it and try again.

It did sound truely awesome when it started. I blipped the throttle a few times and it just screamed, letting off a growling howl that gave me goose bumps.... was awesome....

lots of pics to follow, so beware if you have slow connections
Top
User avatar
Tony Z
Donor
Donor
Posts: 15008
Joined: Wed Sep 14, 2005 8:33 am
What model do you have?: 2.3L 69; 1302; P/Van
Location: Klipheuwel (near Durbanville), Cape Town or working at sea
Has thanked: 192 times
Been thanked: 488 times
South Africa

Post by Tony Z »

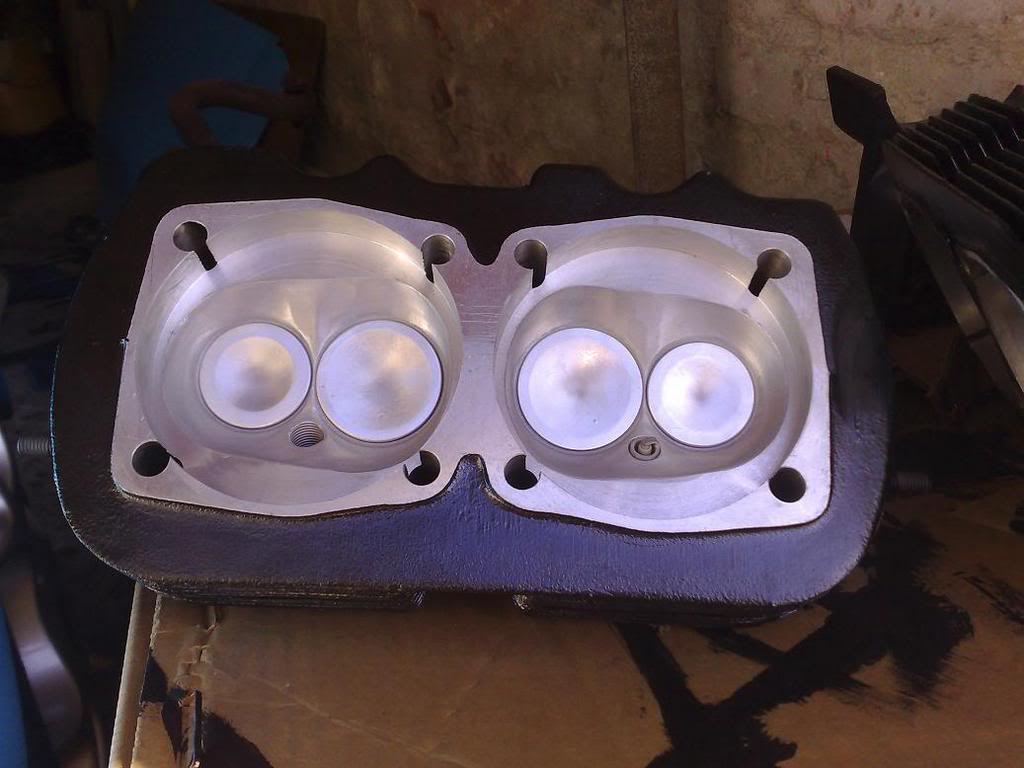

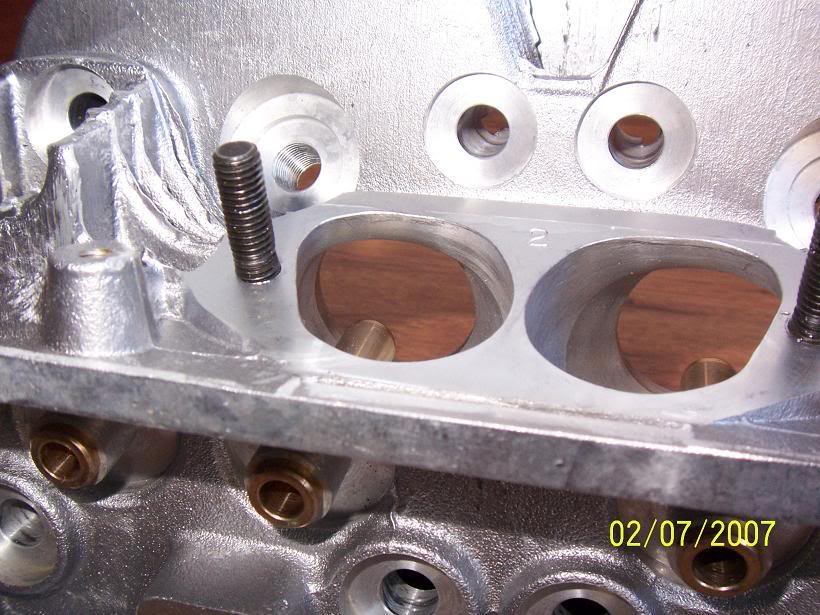

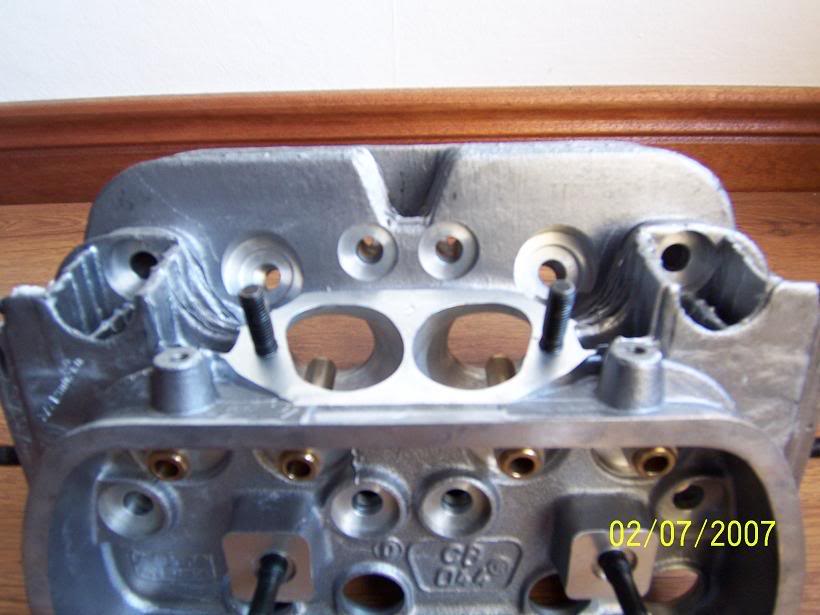

Heads, near completion


Last edited by Tony Z on Fri Oct 19, 2007 12:02 pm, edited 2 times in total.
Top
User avatar
Tony Z
Donor
Donor
Posts: 15008
Joined: Wed Sep 14, 2005 8:33 am
What model do you have?: 2.3L 69; 1302; P/Van
Location: Klipheuwel (near Durbanville), Cape Town or working at sea
Has thanked: 192 times
Been thanked: 488 times
South Africa

Post by Tony Z »

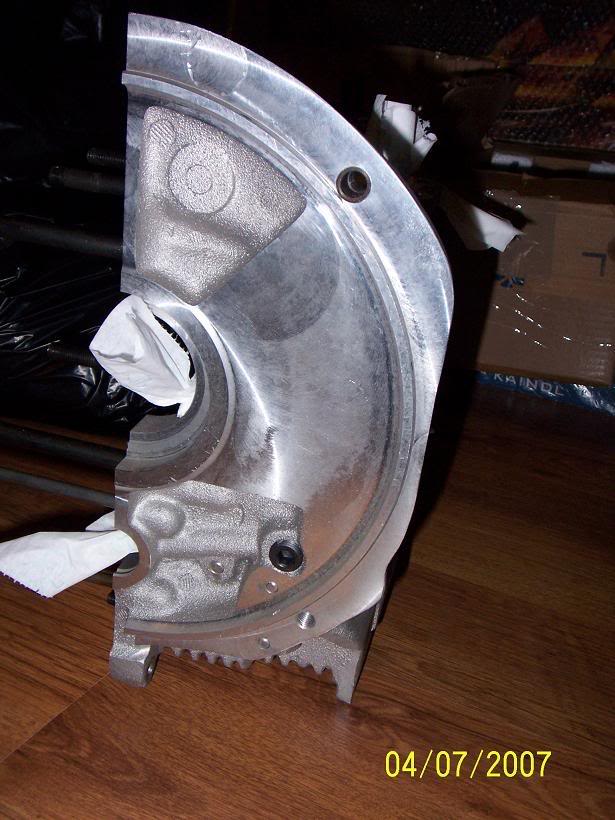

only pic of the case I got

Last edited by Tony Z on Fri Oct 19, 2007 12:04 pm, edited 2 times in total.
Top
User avatar
Tony Z
Donor
Donor
Posts: 15008
Joined: Wed Sep 14, 2005 8:33 am
What model do you have?: 2.3L 69; 1302; P/Van
Location: Klipheuwel (near Durbanville), Cape Town or working at sea
Has thanked: 192 times
Been thanked: 488 times
South Africa

Post by Tony Z »

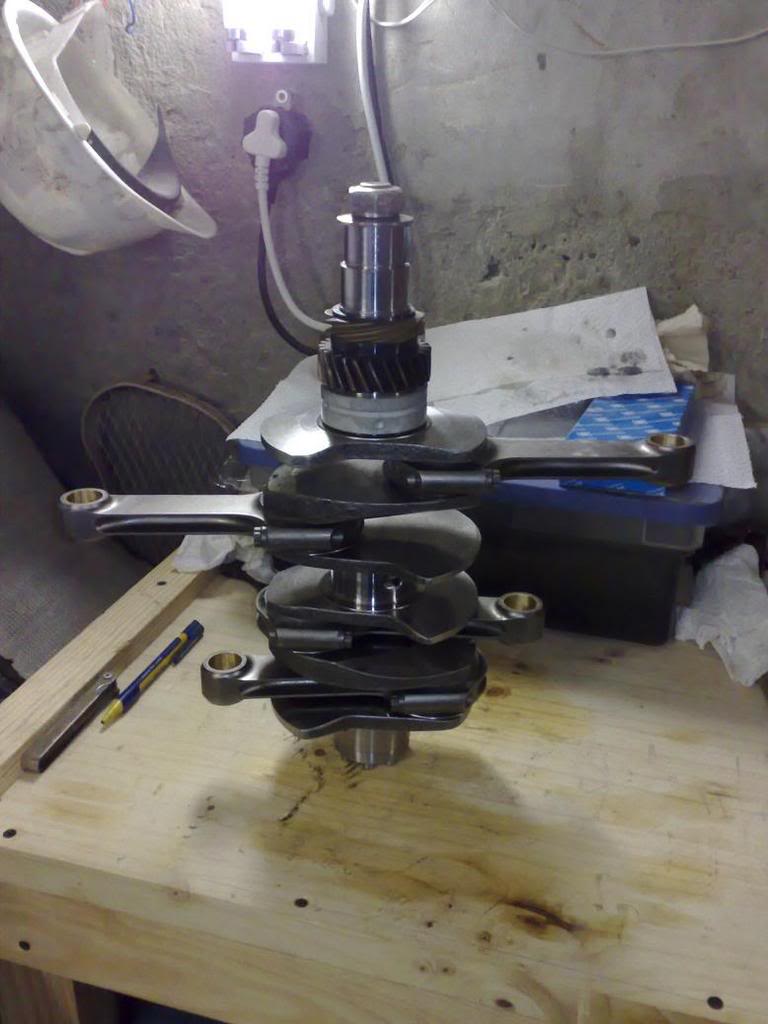

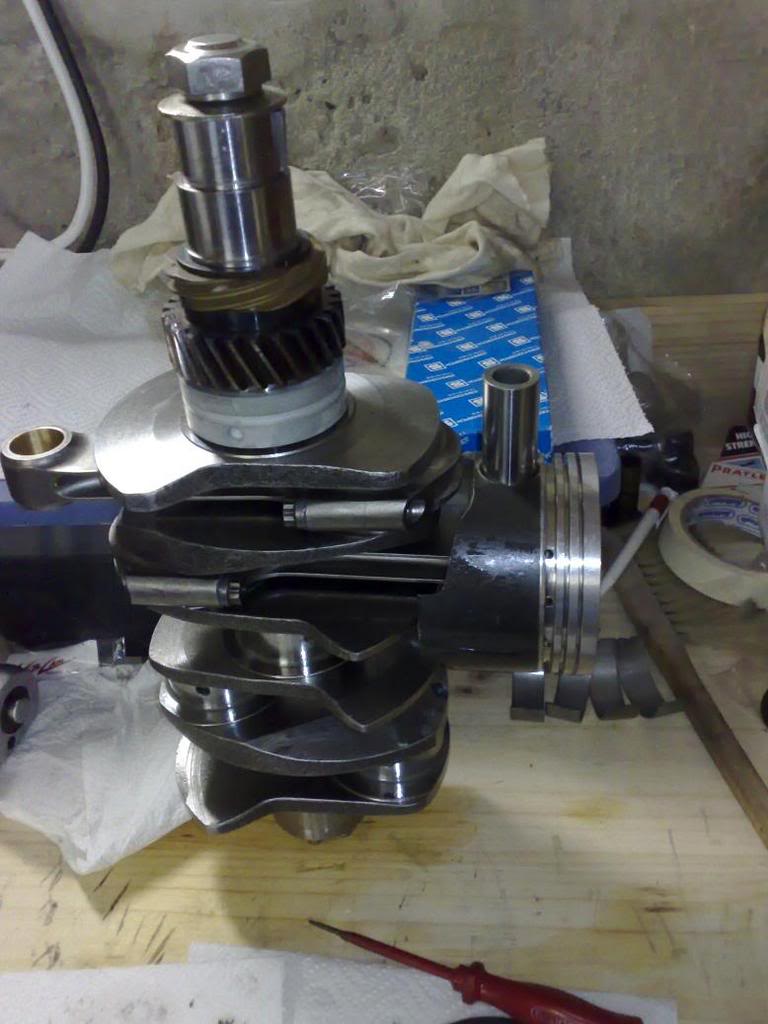

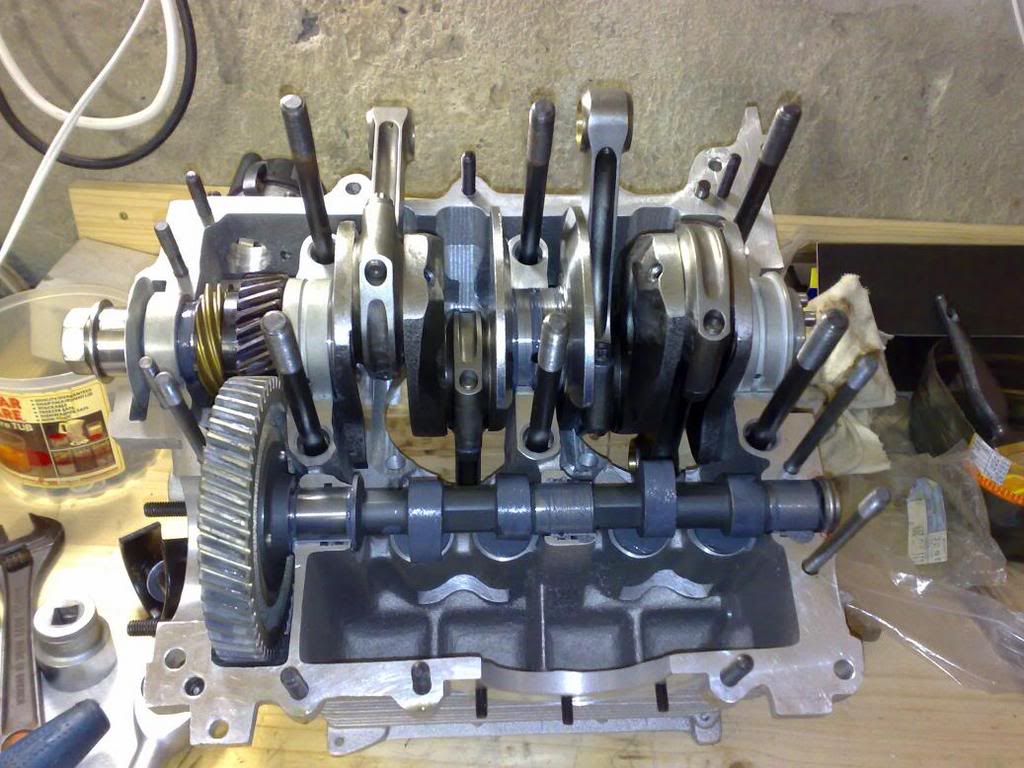

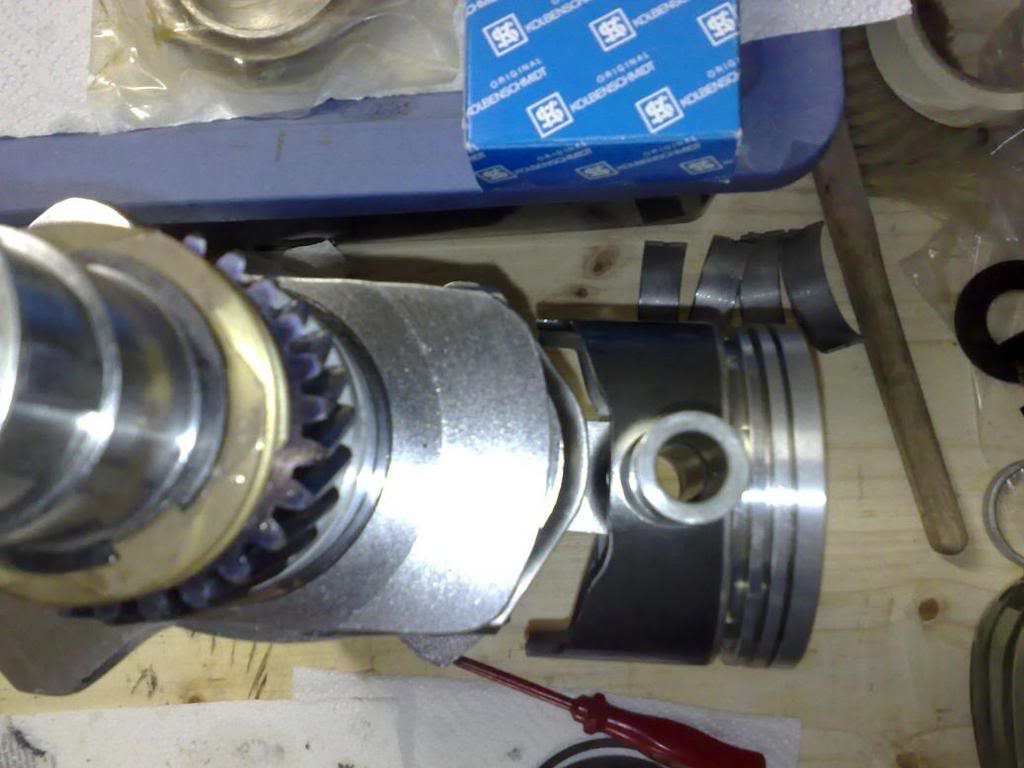

crank during assembly

can anyone notice something odd about this assembly?



Last edited by Tony Z on Fri Oct 19, 2007 12:05 pm, edited 2 times in total.
Top
User avatar
Tony Z
Donor
Donor
Posts: 15008
Joined: Wed Sep 14, 2005 8:33 am
What model do you have?: 2.3L 69; 1302; P/Van
Location: Klipheuwel (near Durbanville), Cape Town or working at sea
Has thanked: 192 times
Been thanked: 488 times
South Africa

Post by Tony Z »

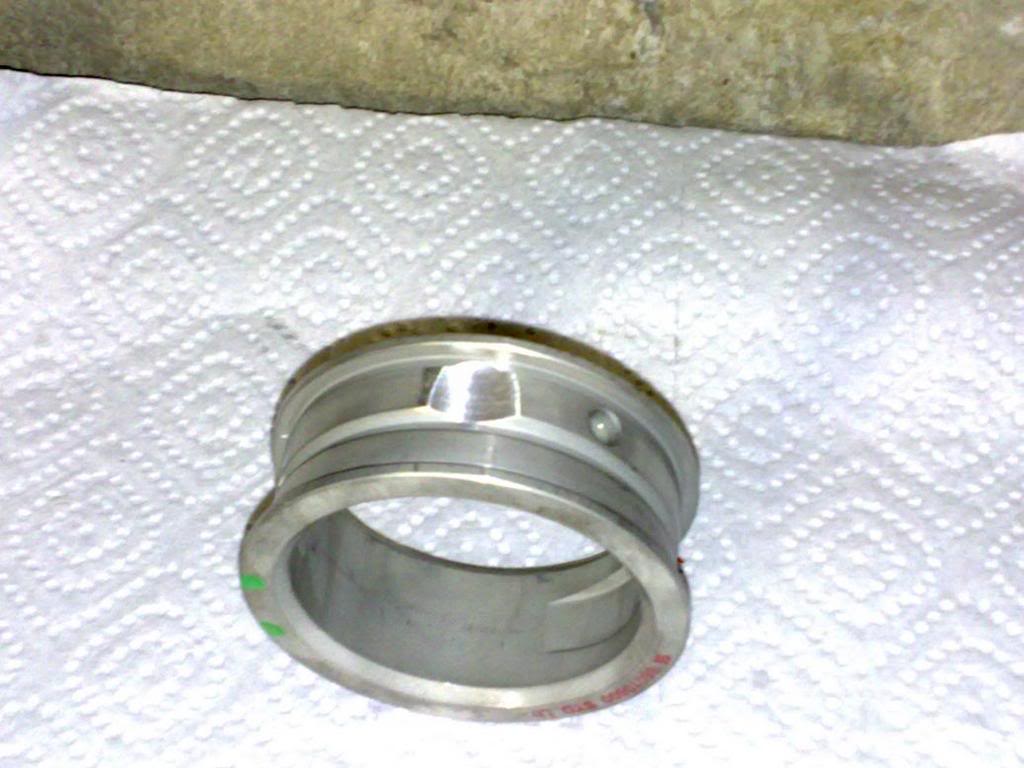

Thrust bearing

Beware to anyone who builds an engine... check to ensure that the oil hole in the case lines up with the oil hole in the bearing... I have heard of a few engine seizing because of this problem...

Last edited by Tony Z on Fri Oct 19, 2007 12:06 pm, edited 3 times in total.
Top
User avatar
Tony Z
Donor
Donor
Posts: 15008
Joined: Wed Sep 14, 2005 8:33 am
What model do you have?: 2.3L 69; 1302; P/Van
Location: Klipheuwel (near Durbanville), Cape Town or working at sea
Has thanked: 192 times
Been thanked: 488 times
South Africa

Post by Tony Z »

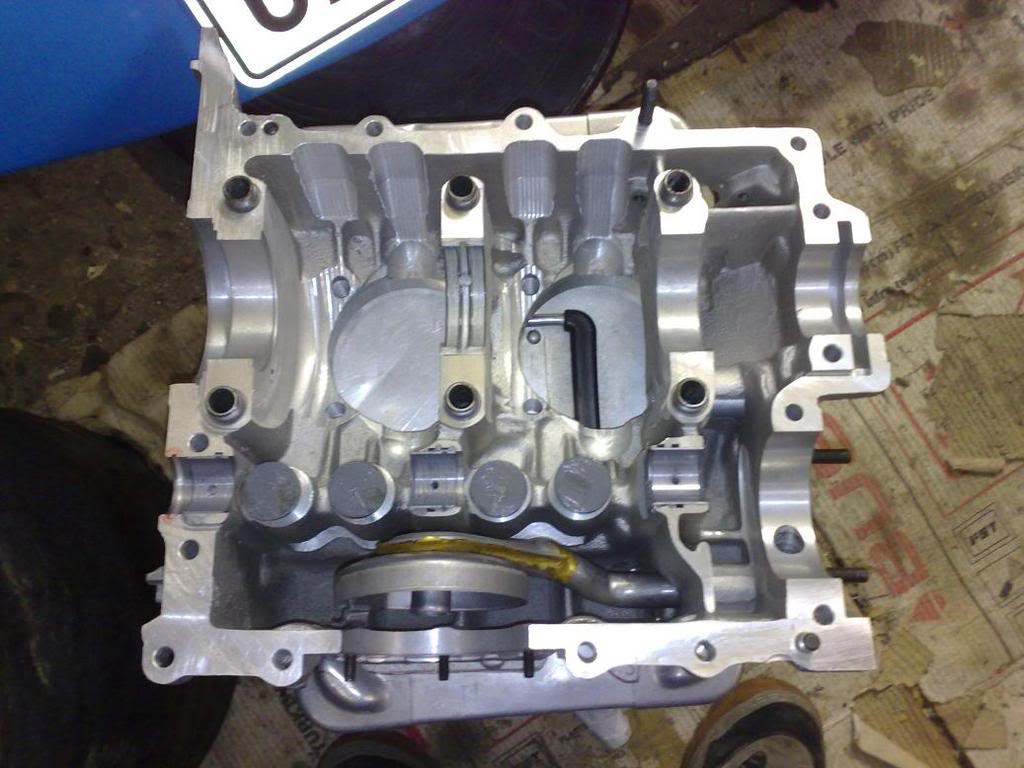

Short block....



Last edited by Tony Z on Fri Oct 19, 2007 12:07 pm, edited 2 times in total.
Top
User avatar
Tony Z
Donor
Donor
Posts: 15008
Joined: Wed Sep 14, 2005 8:33 am
What model do you have?: 2.3L 69; 1302; P/Van
Location: Klipheuwel (near Durbanville), Cape Town or working at sea
Has thanked: 192 times
Been thanked: 488 times
South Africa

Post by Tony Z »

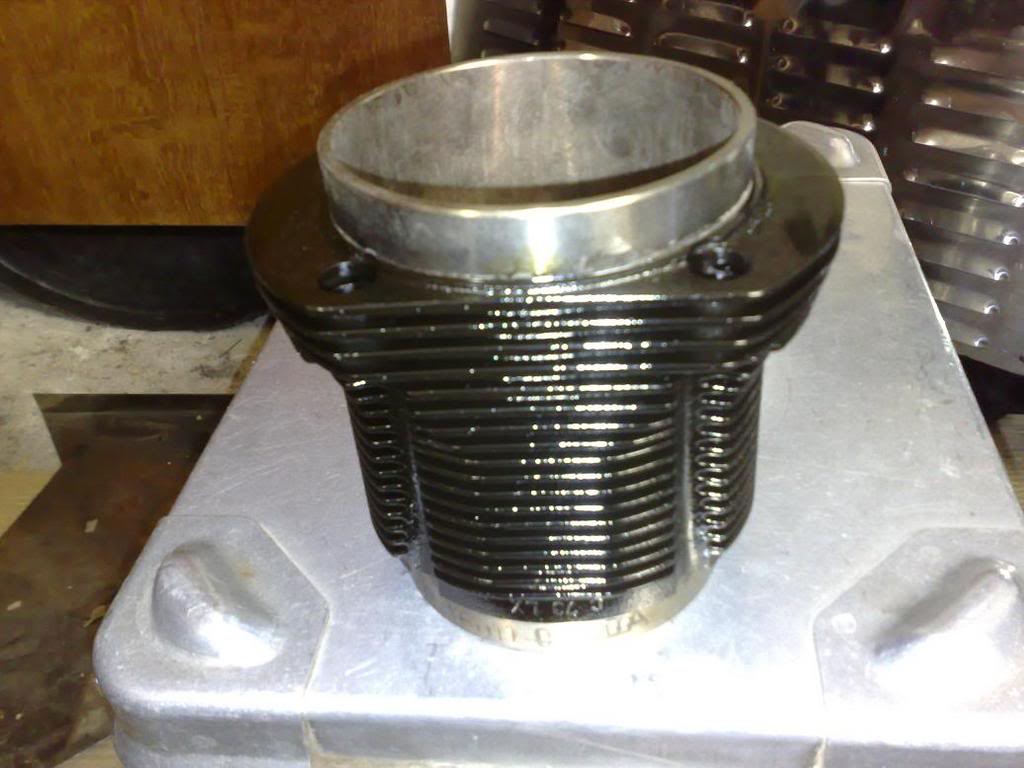

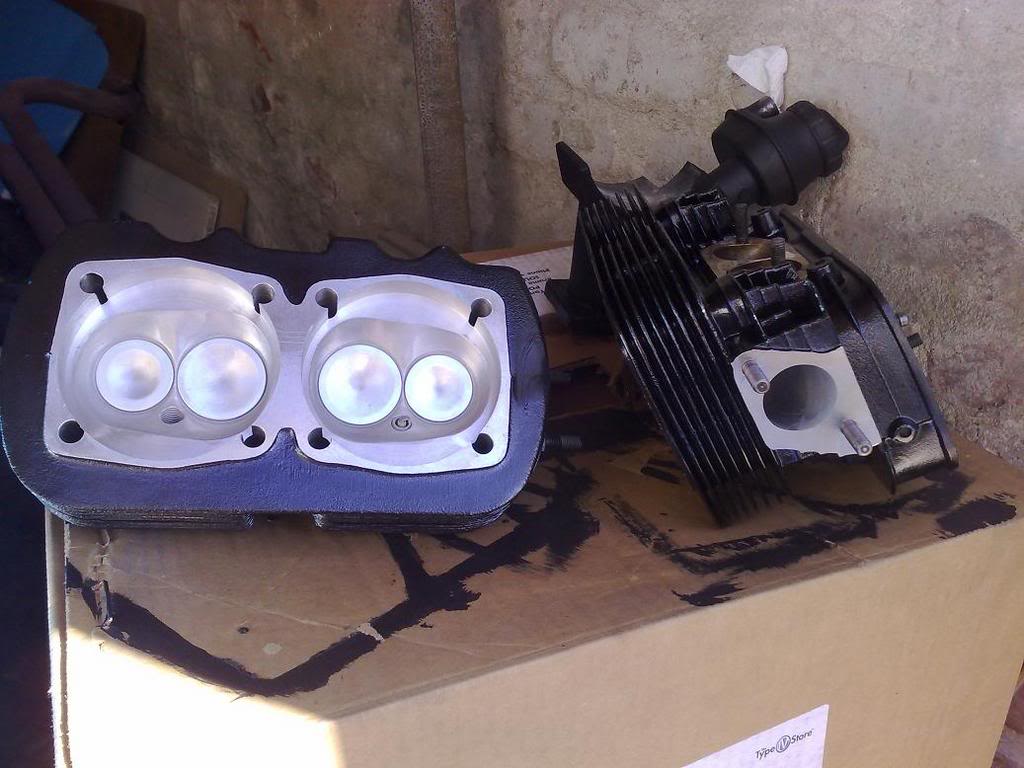

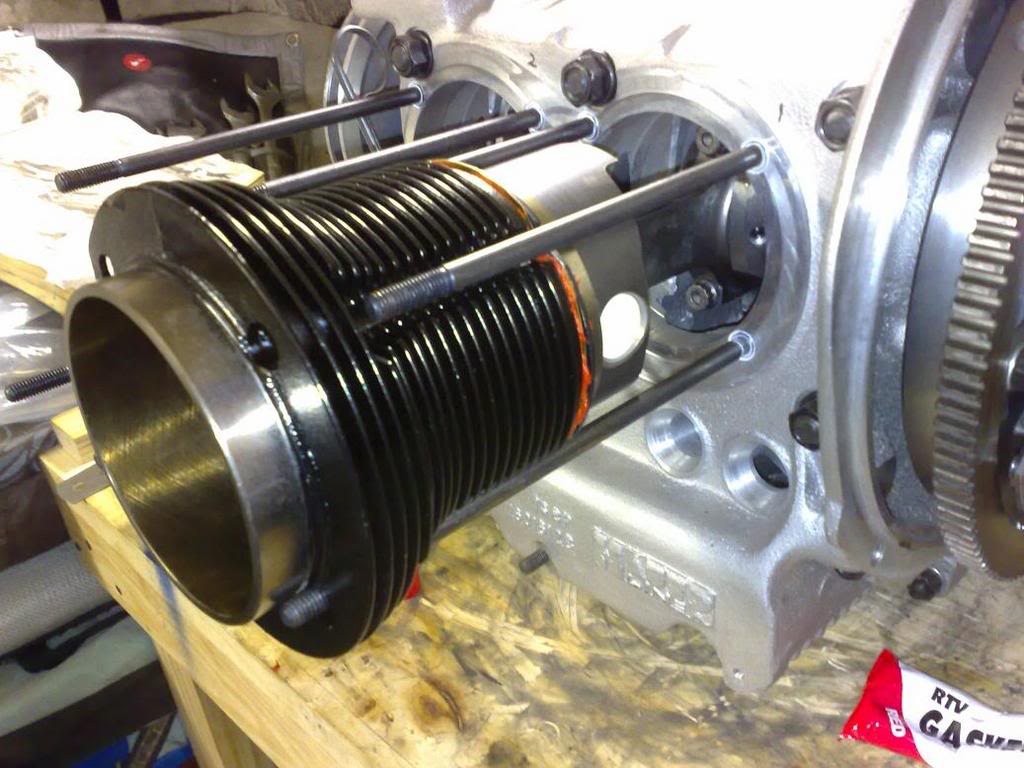

heads and barrels ready to go on



Last edited by Tony Z on Fri Oct 19, 2007 12:08 pm, edited 2 times in total.
Top
User avatar
Tony Z
Donor
Donor
Posts: 15008
Joined: Wed Sep 14, 2005 8:33 am
What model do you have?: 2.3L 69; 1302; P/Van
Location: Klipheuwel (near Durbanville), Cape Town or working at sea
Has thanked: 192 times
Been thanked: 488 times
South Africa

Post by Tony Z »

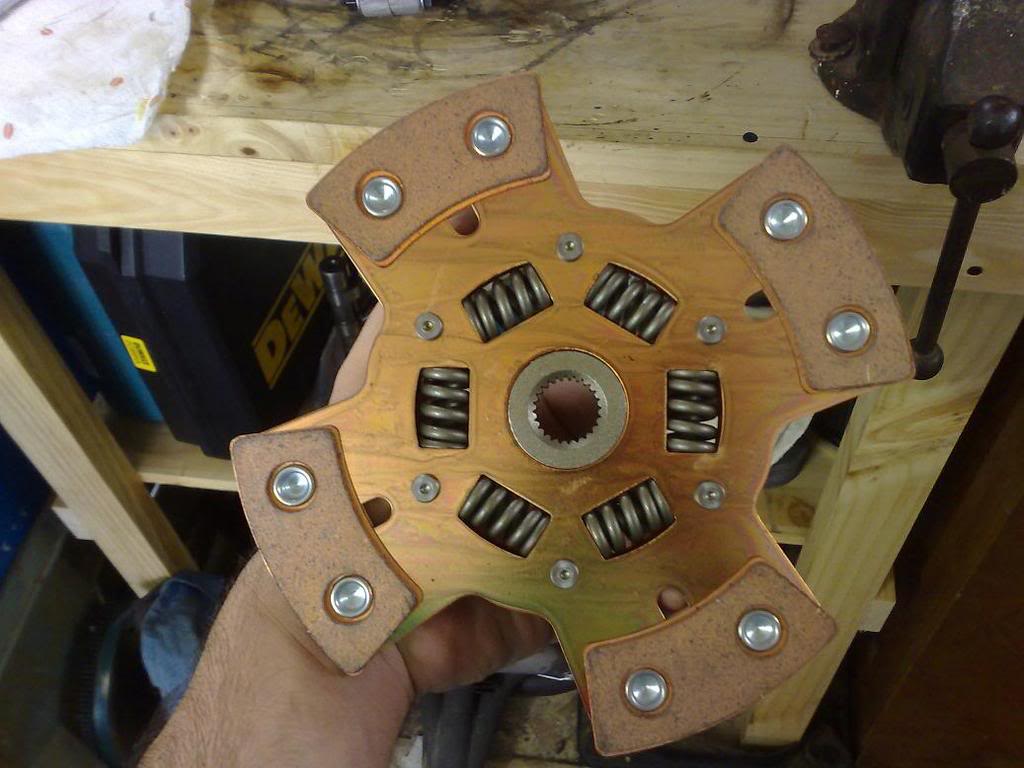

clutch

Last edited by Tony Z on Fri Oct 19, 2007 12:08 pm, edited 2 times in total.
Top
User avatar
Tony Z
Donor
Donor
Posts: 15008
Joined: Wed Sep 14, 2005 8:33 am
What model do you have?: 2.3L 69; 1302; P/Van
Location: Klipheuwel (near Durbanville), Cape Town or working at sea
Has thanked: 192 times
Been thanked: 488 times
South Africa

Post by Tony Z »

Deck height... too little (piston sticking out of barrel)

add shims - I had to cut some from shim stock to get my deck height correct, to 1mm




Last edited by Tony Z on Fri Oct 19, 2007 12:09 pm, edited 2 times in total.
Top
User avatar
Tony Z
Donor
Donor
Posts: 15008
Joined: Wed Sep 14, 2005 8:33 am
What model do you have?: 2.3L 69; 1302; P/Van
Location: Klipheuwel (near Durbanville), Cape Town or working at sea
Has thanked: 192 times
Been thanked: 488 times
South Africa

Post by Tony Z »

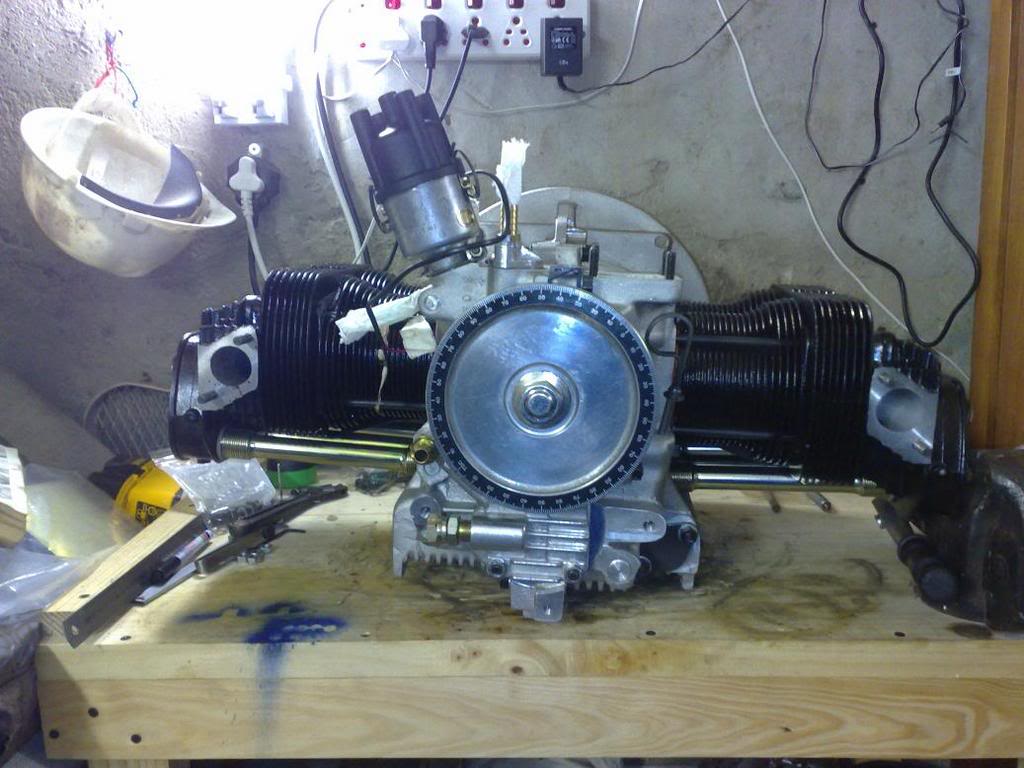

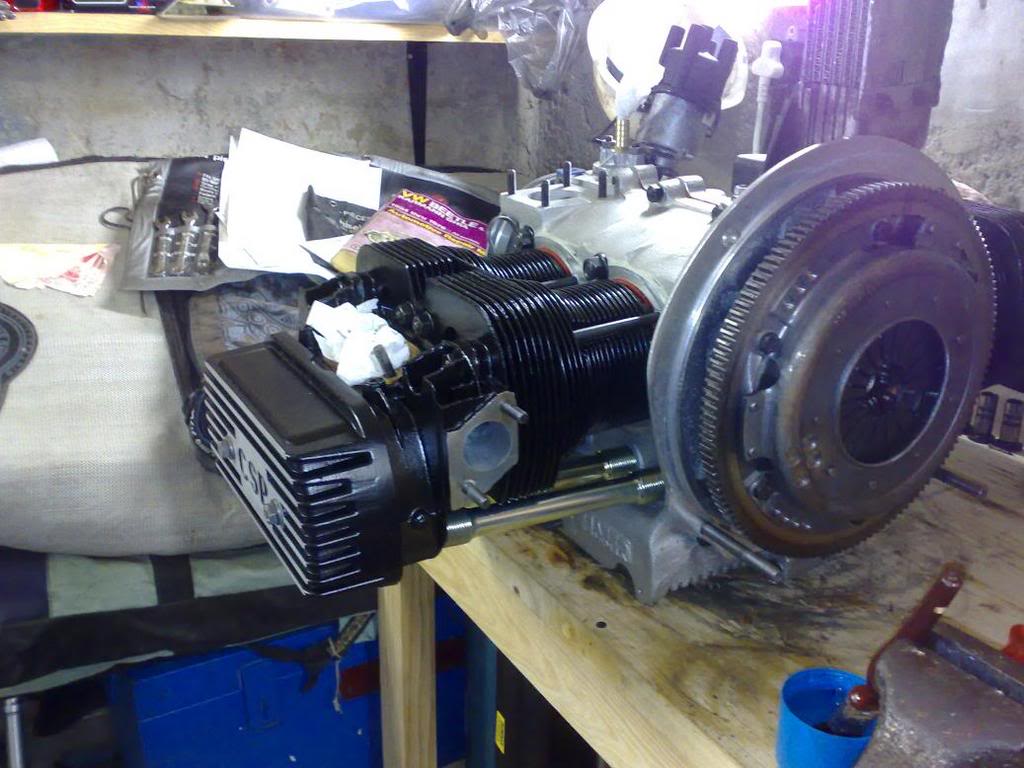

long block coming together



Last edited by Tony Z on Fri Oct 19, 2007 12:10 pm, edited 2 times in total.
Top
User avatar
Tony Z
Donor
Donor
Posts: 15008
Joined: Wed Sep 14, 2005 8:33 am
What model do you have?: 2.3L 69; 1302; P/Van
Location: Klipheuwel (near Durbanville), Cape Town or working at sea
Has thanked: 192 times
Been thanked: 488 times
South Africa

Post by Tony Z »

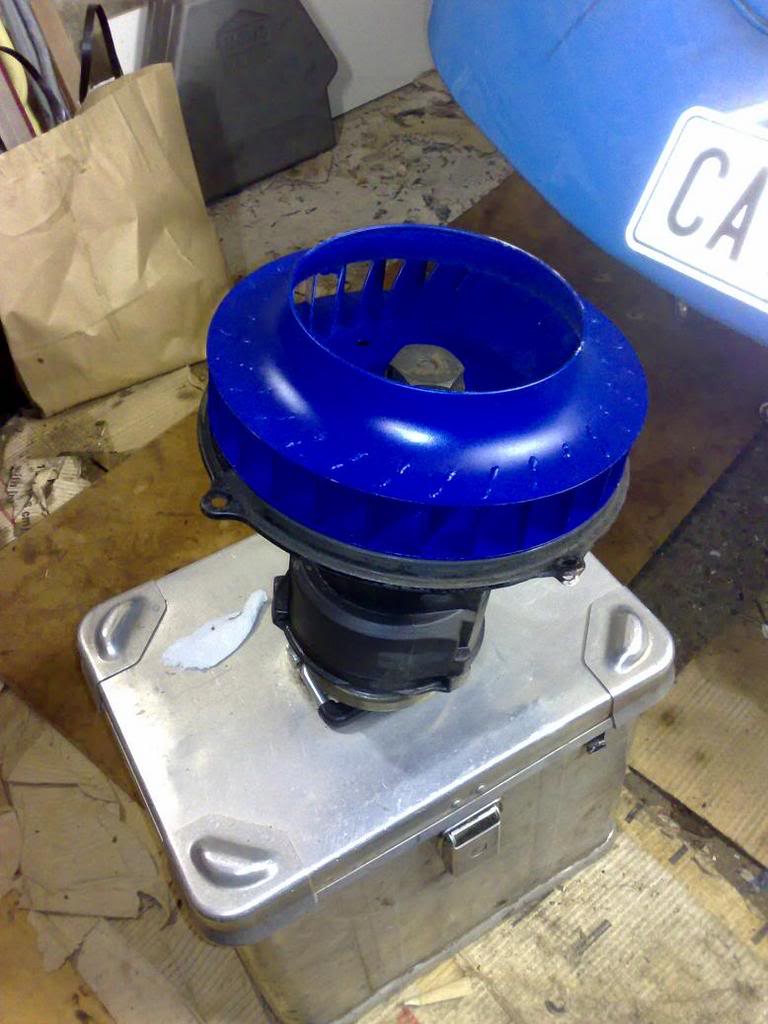

detailing the fan and engine tin....


Last edited by Tony Z on Fri Oct 19, 2007 12:11 pm, edited 2 times in total.
Top
User avatar
Tony Z
Donor
Donor
Posts: 15008
Joined: Wed Sep 14, 2005 8:33 am
What model do you have?: 2.3L 69; 1302; P/Van
Location: Klipheuwel (near Durbanville), Cape Town or working at sea
Has thanked: 192 times
Been thanked: 488 times
South Africa

Post by Tony Z »

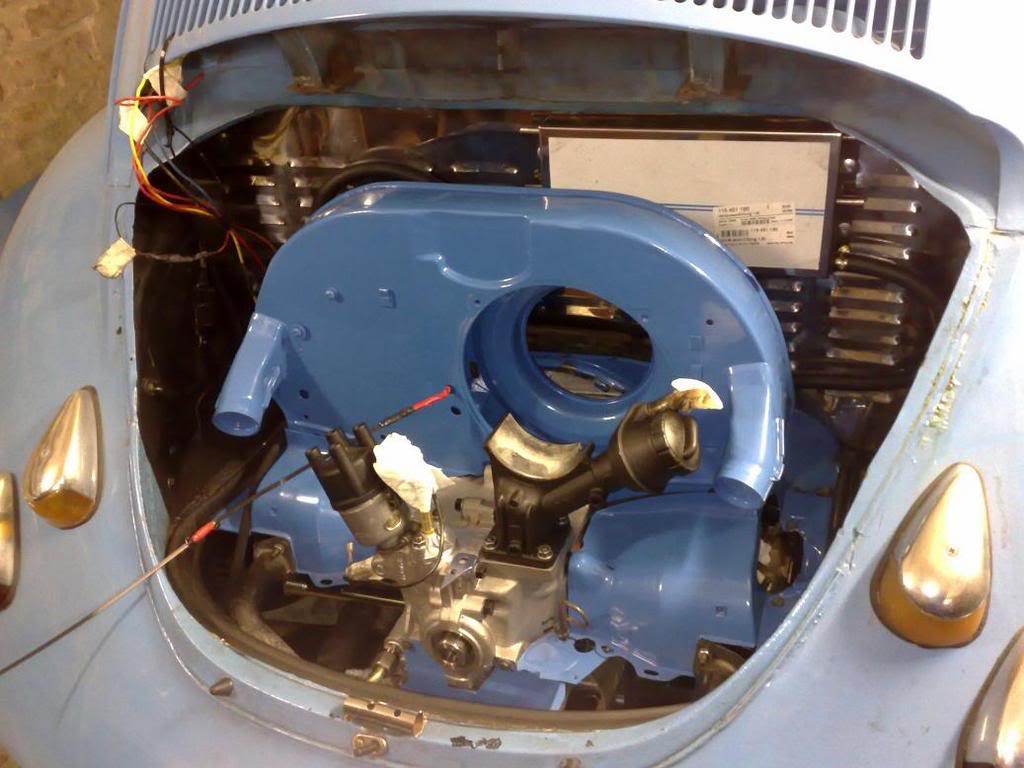

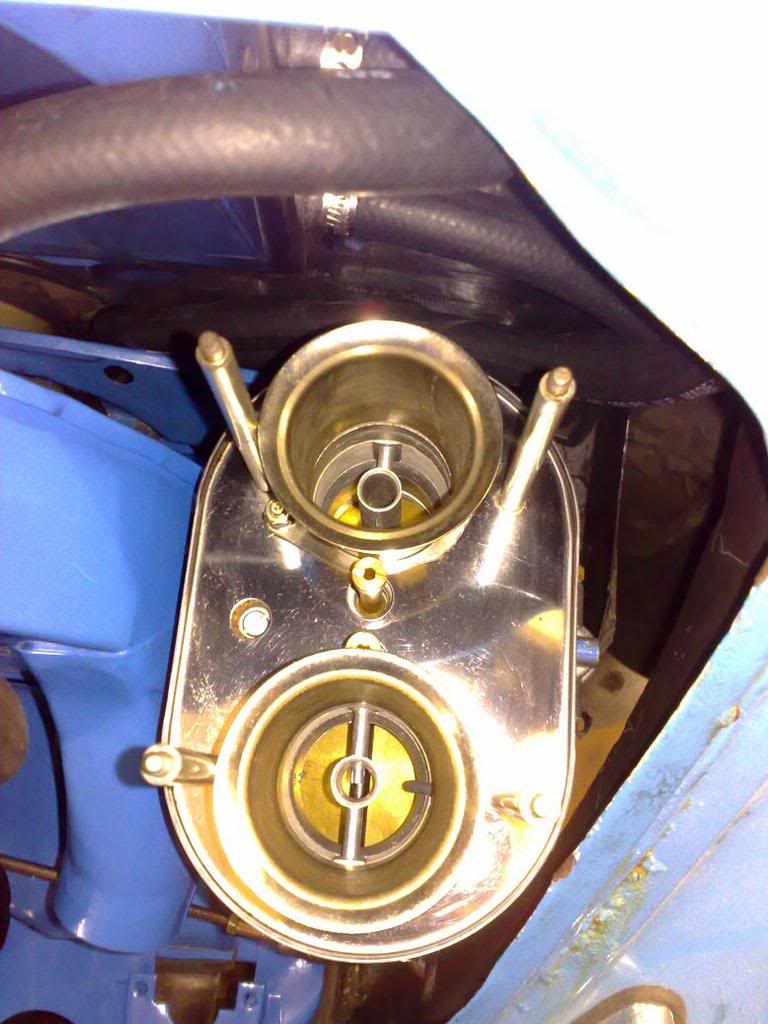

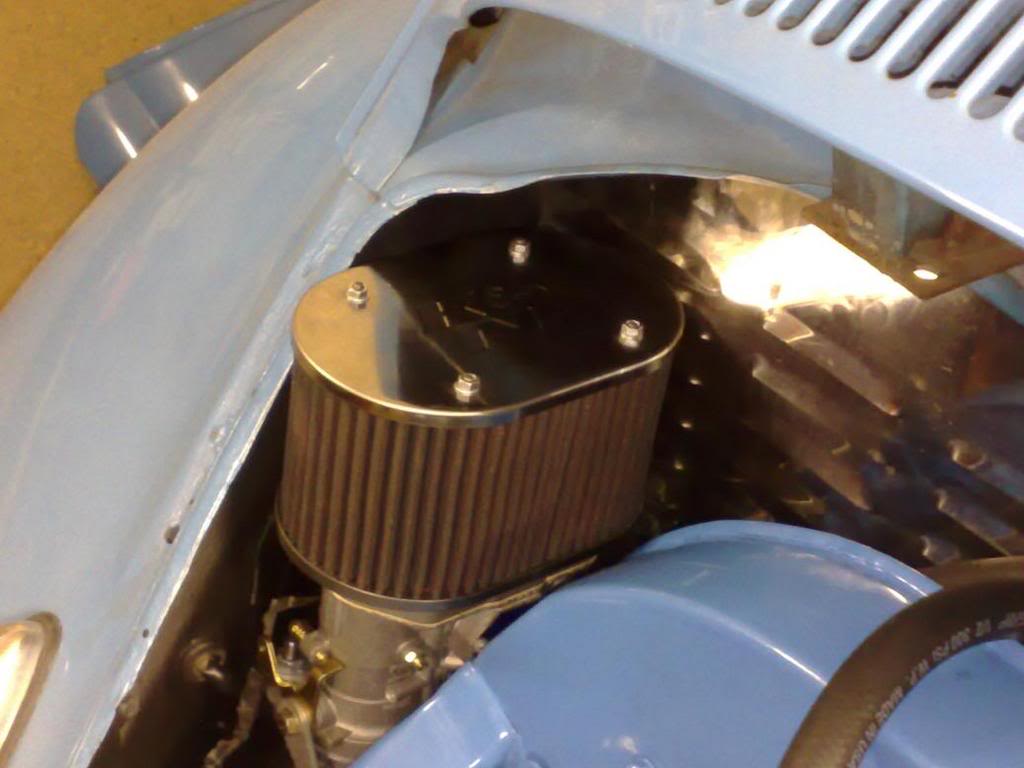

carb mounting process












Last edited by Tony Z on Fri Oct 19, 2007 12:13 pm, edited 2 times in total.
Top
User avatar
Tony Z
Donor
Donor
Posts: 15008
Joined: Wed Sep 14, 2005 8:33 am
What model do you have?: 2.3L 69; 1302; P/Van
Location: Klipheuwel (near Durbanville), Cape Town or working at sea
Has thanked: 192 times
Been thanked: 488 times
South Africa

Post by Tony Z »

thats it for now guys... more to come when the engine gets together again... hopefully better luck next time.
Top
User avatar
Tony Z
Donor
Donor
Posts: 15008
Joined: Wed Sep 14, 2005 8:33 am
What model do you have?: 2.3L 69; 1302; P/Van
Location: Klipheuwel (near Durbanville), Cape Town or working at sea
Has thanked: 192 times
Been thanked: 488 times
South Africa

Post by Tony Z »

DAMN......

sorry boys, these pics are linked to my yahoo account and they have a traffic limit of about 5mb per hour. So stay in line, be patient and your turn will come... unless someone else can host them for me
