WBX mounting bracket - for Blitzvw

Post by AirPower »

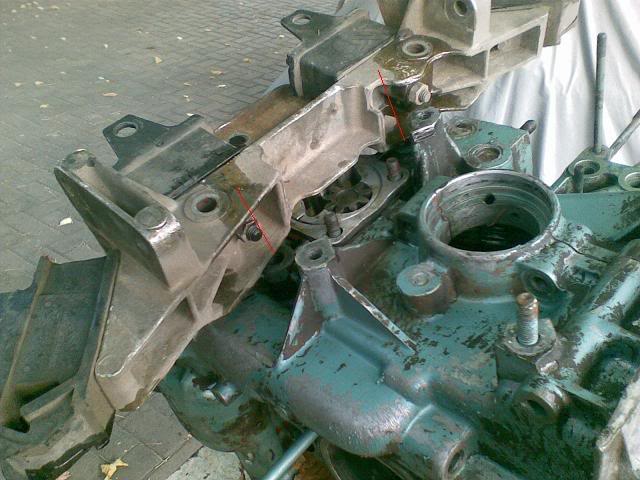

I measured these for Blitz. This is to indicate the difference between the 2 mounting brackets. (WBX and Type 4).

It doesn't look like they can be swapped around to me, but hey - we're capable of ANYTHING.


Other side

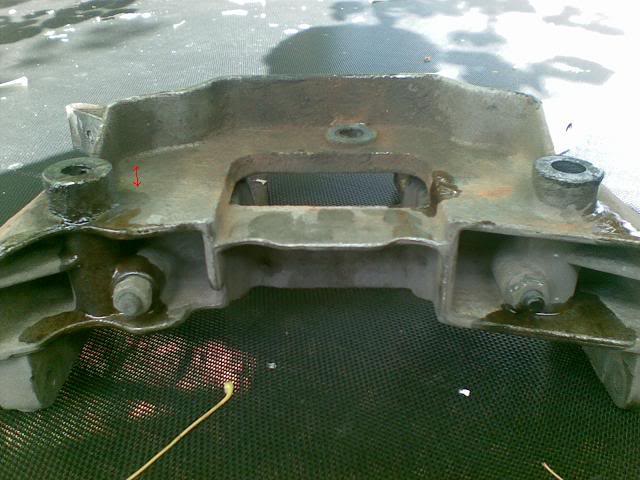

Different heights

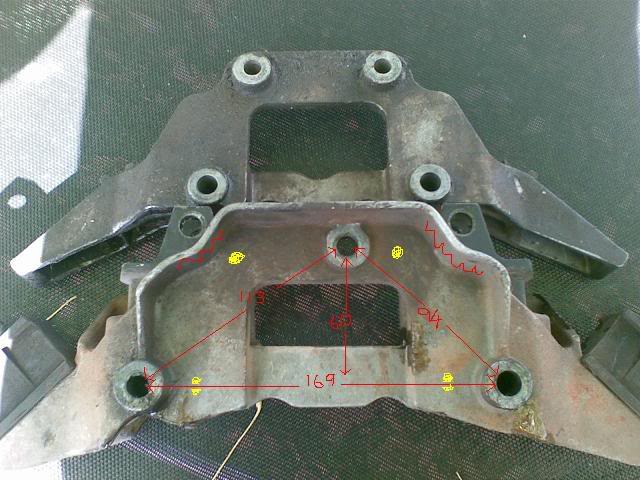

You might be able to drill holes for four bolts, but this will cause the mounting to be VERY weak (see yellow marks top).


Blitz - hope this helps :D
Mario
Eben said: "ACVW's are made of logic."
Bugger said: "I am happy with the drum brakes when done right as this will be used rarely"

"If it can't be fixed with a hammer, you've got an electrical problem" said by someone.
Top
Blitzkrieg
ACVWSA Junkie
Posts: 10784
Joined: Wed Mar 07, 2007 10:41 am
What model do you have?: none
Location: Johannesburg
Has thanked: 91 times
Been thanked: 44 times

Re: WBX mounting bracket - for Blitzvw

Post by Blitzkrieg »

Mario,

Thanks a million dude!!!!! This really makes things easier.

So, does anyone have a Type 4 mount for me? I can swap it for a WBX one in good condition :wink:
If it's too low, you're too old :twisted:
Top
ZeroAxe
Drive Train
Posts: 3004
Joined: Tue Feb 21, 2006 12:07 am
What model do you have?: FUmobile
Location: It doesn't matter.
Been thanked: 1 time

Re: WBX mounting bracket - for Blitzvw

Post by ZeroAxe »

Why not get decent measurements and make your own?
VW Enthusiast
Top
Blitzkrieg
ACVWSA Junkie
Posts: 10784
Joined: Wed Mar 07, 2007 10:41 am
What model do you have?: none
Location: Johannesburg
Has thanked: 91 times
Been thanked: 44 times

Re: WBX mounting bracket - for Blitzvw

Post by Blitzkrieg »

ZeroAxe wrote:Why not get decent measurements and make your own?
I've decided to go that route. Can't be too difficult.
If it's too low, you're too old :twisted:
Top
ZeroAxe
Drive Train
Posts: 3004
Joined: Tue Feb 21, 2006 12:07 am
What model do you have?: FUmobile
Location: It doesn't matter.
Been thanked: 1 time

Re: WBX mounting bracket - for Blitzvw

Post by ZeroAxe »

Borrow the original, put bolts in where they are supposed to go. Then make a 'plug', then from the plug build yours. Isnt too difficult.
VW Enthusiast
